Map Object Configuration

From C3LearningLabs


Object Types

The xml element ObjectTypes defines all the geographical object types in a session.

<ObjectTypes>
  <ObjectType>
  <ObjectType>
  ...
  <ObjectType>
</ObjectTypes>

The xml element ObjectType defines a geographical object type and contain a set of basic properties. Beside the basic properties the activated modules can add properties for the ObjectTypes. See documentation for each module.

A geographical object type is defined with the following properties:

Property

Module

Value

IDName

The identification name for a object type.

Value example = "Pine", "Birch", "House", "Water"

Description

Object description.

Value example= "Water post"/>

DestroyEffect

Forest Fire

What happens when the object are in fire.
See DestroyEffect

Value example= "Fuel station"/>

FireSpeed

Forest Fire

The fire spread factor for this object. The ignite time is multiplied with this value.

Value example= "1"
Value example = "0.5"

For more information see the fire simulation documentation.

FuelRefillSpeed

Logistic Fuel

The amount of fuel this object can to deliver every second to a unit that is refilling fuel from this object. Apply on object type "fuel". Value example = "15"

Module : Fuel Logistic

Should only be defined if the module FuelLogistic is active.


The Image

UnitMovementSpeed

Units movement delay factor.

ValueEmotional

Emotional value.

ValueMaterial

Material Value.

WaterRefillSpeed

Logistic Water

The amount of water this object can to deliver every second to a unit that is refilling water from this object.
Apply on object type "water". Value example = "15"

Module : Water Logistic

Should only be defined if the module WaterLogistic is active.

    <ObjectType
      IDName = "Normal"
      Description = ""
      DestroyEffect = ""
      FireSpeed = "1"
      FuelRefillSpeed = "5"
      Image = "Object/Normal.gif"
      UnitMovementSpeed = "1"
      ValueEmotional = "1"
      ValueMaterial = "1"
      WaterRefillSpeed = "5" />


Objects

The xml element Objects contains all map objects that should exist in the simulation.

Object

Defines where a map object should exist.

Configuration example:

<source>
<Objects>
  <Object> ... </Object>
  <Object> ... </Object>
  ...
  <Object> ... </Object>
 <Object Type = "Pine" Pos = "12,12" />
    <Object Type = "Pine" Pos = "12,11" />
    <Object Type = "Pine" Pos = "11,2" />
    <Object Type = "Birch" Pos = "38,23" />
    <Object Type = "Birch" Pos = "23,40" />
    <Object Type = "Birch" Pos = "2,32" />
    <Object Type = "House" Pos = "40,40" />
    <Object Type = "Water" Pos = "17,22" />
    <Object Type = "Fuel"  Pos = "11,12" />
    <Object Type = "Water"  Pos = "10,10" />
</Objects>
</source>


A object is defined with the following properties:

Property

Value

Type

The object type identification number.

Value example = "House"
Value example= "Pine"

Pos

Pos on the map

Value example = "2, 20"
Value example= "12,12"

<Source>
    <Object
        Type = "Pine"
         Pos = "12,12"
    />
</Source>


Object Image

The image representing this object on the map should have the file name IDName with '12.gif' as a
extension ( <IDName>12.gif).

Example : Pine12.gif

The image file should be stored in the map image catalog <C3FIRE-MAP-IMAGES> , located at <C3FIRE-WWW-ROOT>/pic/

Example : C:\c3fire\www\pic\Pine12.gif


The standard experiment setting defines four object types. They are Normal, Pine, Birch and House.
The module extended setting defines an additional object type, Water. The type must be represented
of an image, named and saved according to examples above.


Standard experiment setting

Normal : C3system-config-session-unit-window-image-normal12.gif

Pine : C3system-config-session-unit-window-image-pine12.gif

Birch : C3system-config-session-unit-window-image-birch12.gif

House : C3system-config-session-unit-window-image-house12.gif


Module extended setting
Water : C3system-config-session-unit-window-image-water12.gif


The different
geographical objects


Display Objects

The xml element Objects contains all map objects that should be visible on the users map at start.

DisplayObject

Defines where a map object should exist on the map.

Configuration example

<source>
<DisplayObjects>
  <DisplayObject> ... </DisplayObject>
  <DisplayObject> ... </DisplayObject>
  ...
  <DisplayObject> ... </DisplayObject>
    <DisplayObject Type = "Pine"  Pos = "5,10" />
    <DisplayObject Type = "Pine"  Pos = "38,22" />
    <DisplayObject Type = "Birch" Pos = "37,23" />
    <DisplayObject Type = "Birch" Pos = "1,2" />
    <DisplayObject Type = "Birch" Pos = "23,34" />
    <DisplayObject Type = "House" Pos = "1,38" />
    <DisplayObject Type = "Water" Pos = "17,22" />
    <DisplayObject Type = "Fuel"  Pos = "11,12" />
    <DisplayObject Type = "Water"  Pos = "10,10" />
</DisplayObjects>
</source>

A DisplayObject is defined with the following properties:

Property

Value

Type

The object type identification number.

Value example = "House"
Value example= "Pine"

PosX

Pos on the map

Value example = "5, 10"
Value example= "12,12"



<Source>
    <DisplayObject
        Type = "Pine"
         Pos = "12,12"
    />
</Source>

DestroyEffect


  <DestroyEffects>

    <DestroyEffect
      IDName = "FuelStation"
      Description = "When the fuel station is in fire it will explode, All unit in the area 3x3 will be destroyed."
      DestroyTime = "0.0"
      FireRadie = "2"
      FireType = "Fire"
      ObjectRadie = "0"
      ObjectType = ""
      UnitRadie = "2"
      UnitType = "Destroy"
      WhenFireBurnedOut = "False"
      WhenInFire = "True"
      WhenInFireAndOutOfWater = "False" />

  </DestroyEffects>

Edit Objects on Map

Examples

Change House to School

If you have a map with houses and want to change some house to a school follow these steps.


  1. Make sure that the a school object is defined in the XML ObjectTypes Tag in the definition file, Example file name ...-ObjectsTypes.coni
    <ObjectTypes>
      <ObjectType
        ...
        <ObjectType
            IDName = "School"
            AidRefillSpeed = "0"
            Description = ""
            DestroyEffect = ""
            FireSpeed = "1"
            Image = "Object/School.gif"
            PeopleTransportAlwaysSendNrOfPeople = "False"
            PeopleTransportEnterLeaveSpeed = "0"
            PeopleTransportUnload = "False"
            PowerRefillSpeed = "0"
            SandbagRefillSpeed = "0"
            UnitMovementSpeed = "1"
            ValueEmotional = "1"
            ValueMaterial = "1" />
        ...

  2. Make sure that the a school object is defined in the user interface object palette definition.
    XML ObjectPalette Tag is defined in the Main UI file. Example file name ...-UIMain.coni
    Resize the object panel if needed.
    <UserInterfaceLayout>
        <Layout
          Name = "Ground Chief" >
          ...
          <Object
            Name = "ObjectPalette"
            ...
            VisibleObjects = "Pine,Birch,House,School,Hospital,Tent,Water" />
    ...

    <ManagerConfig
      ...
      <SessionControlLayout>
        ...
        <Object
          Name = "ObjectPalette"
          ...
          VisibleObjects = "Pine,Birch,House,School,Hospital,Tent,Water" />
    ...

    <ReplayConfig
      ...
      <SimulationMapLayout>
        ...
        <Object
          Name = "ObjectPalette"
          ...
          VisibleObjects = "Pine,Birch,House,School,Hospital,Tent,Water" />
    ...

  3. Update simulation information where the school should be.
    The positions is defined in the XML Objects tag in the definition file.
    Example file name ...MapObjectsPos.coni
    <Objects>
      ...
      <Object
        Type = "House"
        Pos = "2,17" />
      ...

    Pos is the position on map "x,y" / "Column,Row"
    Change "House" to "School"
  4. Update map information where the school should be.
    The positions is defined in the XML DisplayObjects tag in the definition file.
    Use to be the the same file as where the XML Objects tag is.
    Example file name ...MapObjectsPos.coni
    <DisplayObjects>
      ...
        <DisplayObject
           Type = "House"
           Pos = "2,17" />
      ...

    Pos is the position on map "x,y" / "Column,Row"
    Change "House" to "School"

Map Editor

Description below make it possible to manipulate the map objects with the user interface and save it to disk.
The units position is moved with the map manipulation commands described below.

The position of the people that you can rescue in the map, are NOT updated with this tool.
You need to manually update all the Positions.
The people position is located in a file that have a name like.
xxxx-PeoplePos.coni
It contains a list of all the people in the world.



Activation and editing steps
  1. In Players UI configuration in file <config_name>-UIMain-Mac.coni set ObjectPalette config to the information below.
    In most configurations the players UI is defined in <Layout Name = "Ground Chief" >.
       <Layout
          Name = "Ground Chief" >
          ...
          <Object
            Name = "ObjectPalette"
            BorderVisible = "True"
            Enabeled = "true"      Should be true
            Pos = "1222,290"
            Size = "120,180"
            Visible = "true"       Should be true
            VisibleObjects = "" /> Should be empty

  2. Start the session and let the session run.
    Edit the map in player A´s UI
    You need to ignore the fire or crenate an scenario that does not start the fire.
  3. Save the map: Alt-S : Se description below.
  4. Replace the map information in the map object position definition file.
    Example: located in condition folder, <config_name>-MapObjectsPos.coni
      <Objects>
        Insert all <Object>'s here
      </Objects>

      <DisplayObjects>
        Insert all <DisplayObject>'s here
      </DisplayObjects>

  5. Copy the units positions to the unit start position definition file.
    Example: located in condition folder, <config_name>-UnitsPos.coni
  6. Restor the Players UI configuration in file <config_name>-UIMain-Mac.coni ObjectPalette information.
    Example
       <Layout
          Name = "Ground Chief" >
          ...
          <Object
            Name = "ObjectPalette"
            BorderVisible = "True"
            Enabeled = "true"
            Pos = "1222,290"
            Size = "120,180"
            Visible = "true"
            VisibleObjects = "Pine,Birch,House,School,Hospital,Tent,Water" />

Map editing
You can select objects in the object Palette. The selected object get a white marking.
Then you can put the objects on the map. Point on the map an press left mouse button.
C3fire doc map map editor object palette.png


Map manipulation
While the session is running you can do the commands described below, (Save before session end)
The mouse pointer needs to be on the map to make the key commands to work.
When you are ready save the map and copy the saved object and unit positions to you configuration


  • Alt-S : Save, saves the map to, ...\C3LearningLabs\C3Fire\Client\Files\Root\saved-map.txt
or ...\C3Systems\C3Fire\Client\saved-map.txt
  • Alt-R : Rotate the map clockwise
  • Alt-L : Rotate the map counter clockwise
  • Alt-H : Mirror horizontally
  • Alt-V : Mirror vertically
  • Alt-T : Mirror top right bottom left
  • Alt-U : Mirror top left bottom right

Map with place names

With some image editing it is possible to make good maps with place names.


Background Image
The map names should be placed in the map background image.
What map background image that should be used is defined in the session main configuration, in the <Map> element.
Example file name: P4-F4B4L4D4-C1-F80-HV.con (the main configuration files ends with '.con')
<Source>
  ...
  <Map
    IDName = "Main"
    ...
    BackgroundImage = "fhs23b-40x40.gif"
    ...
</Source>
All map background image files are stored in C:\C3LearningLabs\C3Fire\Client\Files\Root\Map on both sever and client (Player) computers.
Normal Background are file for map size 40x40: Background-40x40.gif

How to steps

To use a map with place names do the following.
  1. Create the c3fire map with the vegetation and hoses as normal.
    Reserv plases were you want to put the names.

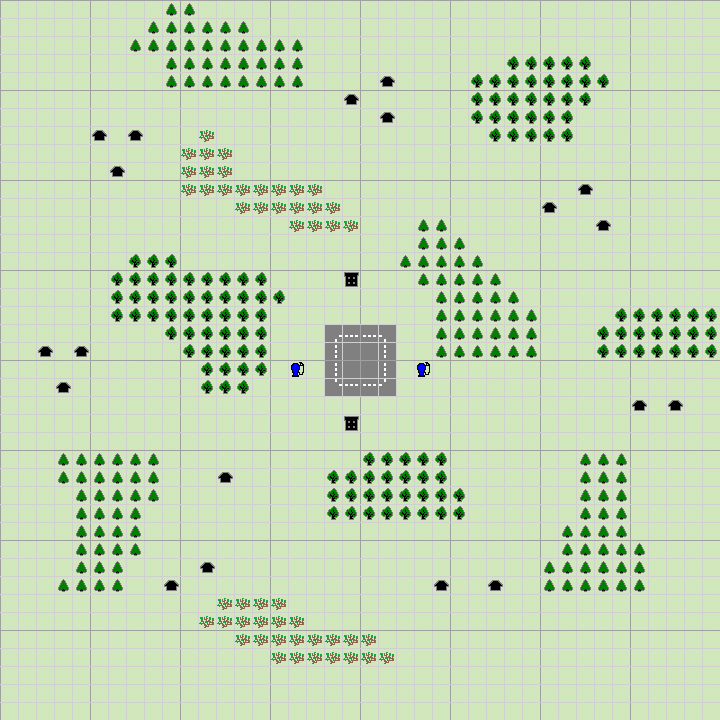

  2. In an image editor load a background image with the grid.
    Support and example design files exist in C:\C3LearningLabs\Resources\C3Fire\Resorces\Map\fhs23a
    There exist a 40x40 grid file, Mapgrid-1.png.
    The example design files are made in the image editor program Gimp (https://www.gimp.org).
  3. Add map names to the background image in an image editor. Save the image file as a gif file.
    Support and example design files exist in C:\C3LearningLabs\Resources\C3Fire\Resorces\Map\fhs23a
    map-names.xcf contains example names, One layer for each name.
    FHS23b-40x40.xcf is an example file, it contain all names layers, only the selected layers are visible.
    If you use this file, then make all name layers you want to use visible and move them to position on the map.
    If you want to use C3Fire's vegetation and house icons do not insert the icons in the map image, they are inserted by the C3Fire system.

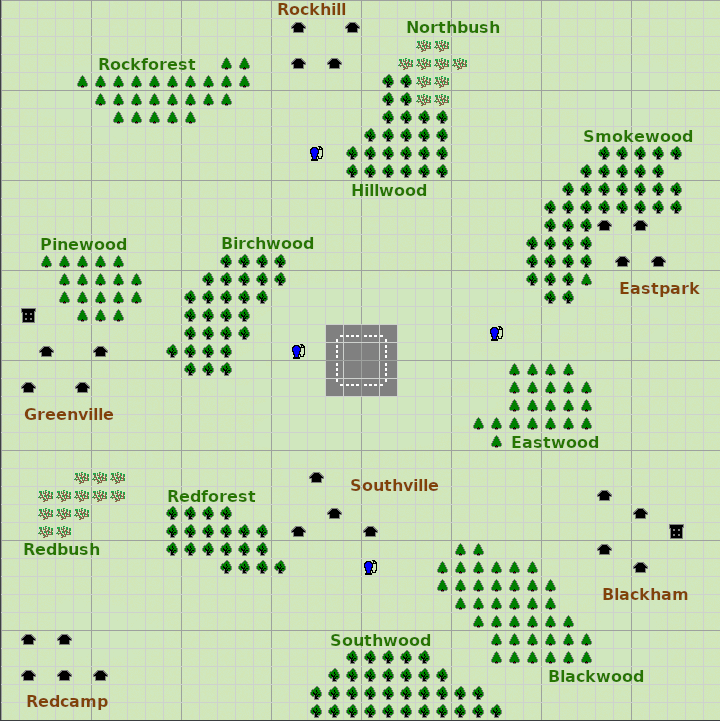

  4. In C3Fire the map will look like this.
  5. On all computers (Server and player Clients), copy the map image to. C:\C3LearningLabs\C3Fire\Client\Files\Root\Map
  6. In the session main configuration set the name of the map image in the <Map> element.
    Example file name: P4-F4B4L4D4-C1-F80-HV.con (the main configuration files ends with '.con')
    <Source>
      ...
      <Map
        IDName = "Main"
        ...
        BackgroundImage = "fhs23a-40x40.gif"
        ...
    </Source>

  7. In the session main configuration set the map configuration so that it does not view the grid in the <Map> element.
    <Source>
      ...
      <Map
        IDName = "Main"
        ...
          GridUse = "False"
        ...
    </Source>
