Pre session configuration

Role configuration

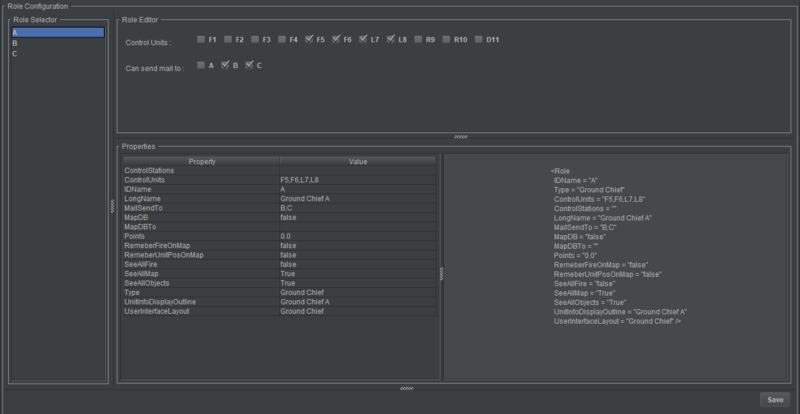

The role configuration window contains three panels.

  • Role Selector: Select which Role to edit
  • Role Editor: Edit Role configuration
  • Properties: View all properties for the Role.


More information can be found at Role Configuration.

Person Move Control

Role Selector

Select which Role to edit.

Person Move Control

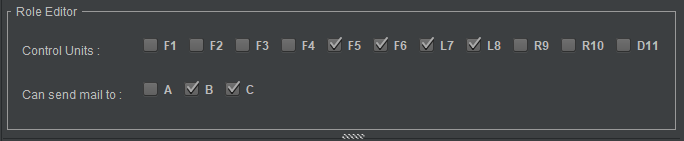

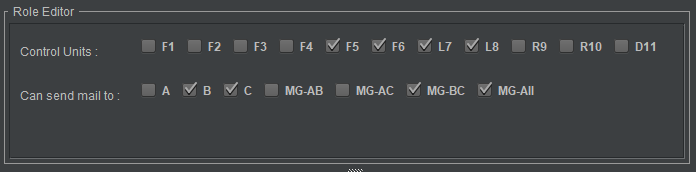

Role Editor

Edit Role configuration:

  • Select and unselect which Units the Role can control.


Person Move Control

  • Select and unselect which Roles and Mail Groups the Role can send mail to and chat with.


Person Move Control

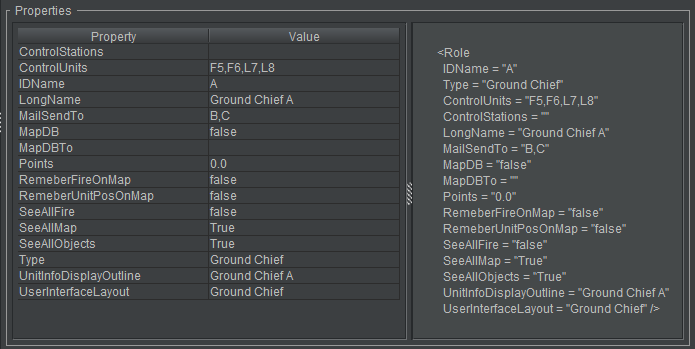

Properties

This panel is split into two sections. The left-hand side displays Role configuration properties and values, in tabular format. The right-hand side displays the corresponding XML. The information in this panel updates as changes are made in the panels above.

Person Move Control

Save Configuration

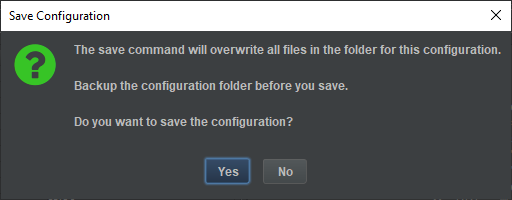

Clicking the Save button will generate the following dialog box:

Person Move Control

Clicking Yes will save changes to the configuration (.con and .coni) files in the relevant configuration folder. This includes all changes made in both the Role Configuration and Unit Configuration windows.

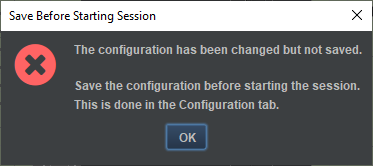

Save Before Starting Session

If Save is not clicked and the user clicks Start (in the Session Control panel in the Play tab), the following dialog box appears:

Person Move Control

After starting a C3Fire session

The Role Configuration and Unit Configuration buttons are inactive. Only the Agile Configuration button is available in the Configuration tab.

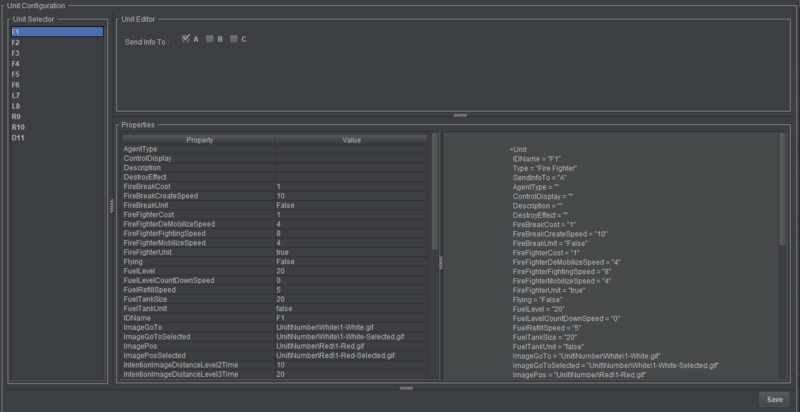

Unit configuration

Unit Configuration contains three panels.

  • Unit Selector: Select which Unit to edit.
  • Unit Editor: Edit Unit configuration.
  • Properties: View all properties for the Unit.


More information can be found at Unit Configuration.

Person Move Control

Unit Selector

Select which Unit to edit.

Person Move Control

Unit Editor

Edit Unit configuration:

  • Select and unselect which Roles the Unit sends information (within its observation area) to.


Person Move Control

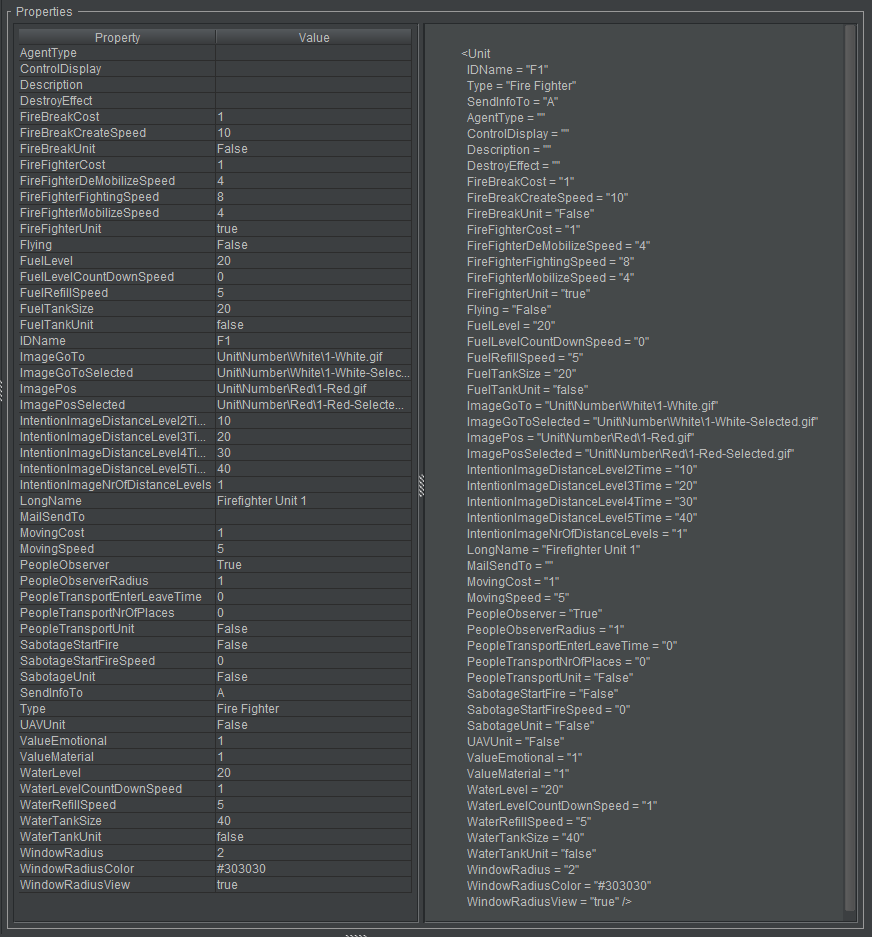

Properties

This panel is split into two sections. The left-hand side displays Unit configuration properties and values, in tabular format. The right-hand side displays the corresponding XML. The information in this panel updates as changes are made in the panels above.

Person Move Control

Save Configuration

Clicking the Save button will generate the following dialog box:

Person Move Control

Clicking Yes will save changes to the configuration (.con and .coni) files in the relevant configuration folder. This includes all changes made in both the Unit Configuration and Role Configuration windows.

Save Before Starting Session

If Save is not clicked and the user clicks Start (in the Session Control panel in the Play tab), the following dialog box appears:

Person Move Control

After starting a C3Fire session

The Unit Configuration and Role Configuration buttons are inactive. Only the Agile Configuration button is available in the Configuration tab.

Organizational change during a session

With these panels the Manager is able to change the organization during a session by changing Role, Unit and Mail Group configuration. These changes take effect immediately.

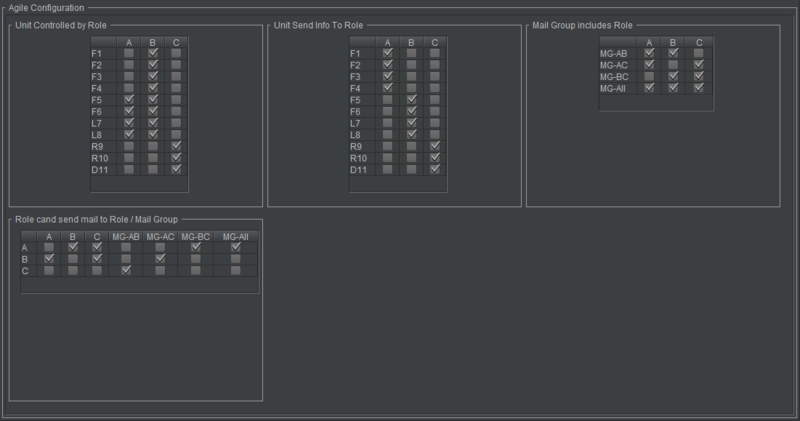

Agile Configuration contains four panels.

  • Unit Controlled by Role: Which Roles each Unit is controlled by.
  • Unit Send Info to Role: Which Roles each Unit will send the information (within their observation areas) to.
  • Mail Group includes Role: Which Roles are members of each Mail Group.
  • Role can send mail to Role / Mail Group: Which Roles and Mail Groups each Role can send mail to.


Person Move Control

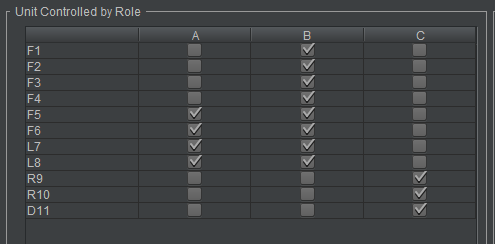

Unit Controlled by Role

Which Roles each Unit is controlled by:

  • Select and unselect Roles.


Person Move Control

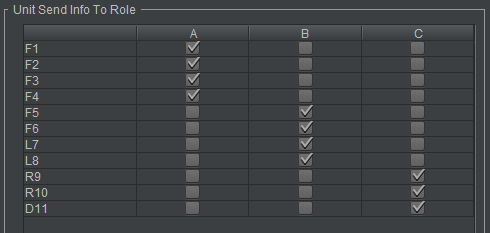

Unit Send Info to Role

Which Roles each Unit will send the information (within their observation areas) to.

  • Select and unselect Roles.


Person Move Control

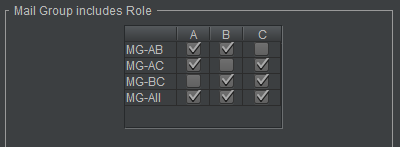

Mail Group includes Role

Which Roles are members of each Mail Group.

  • Select and unselect Roles.


Mail group editor

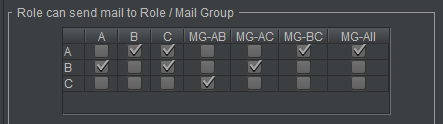

Role can send mail to Role / Mail Group

Which Roles and Mail Groups each Role can send mail to.

  • Select and unselect Roles and Mail Groups.


Send Mail To


Mail Groups

In the Agile Configuration window, it is only possible to select existing Mail Groups. It is possible to create Mail Groups but this is done in the <MailGroups> configuration element in the relevant .con or .coni file, not in the Agile Configuration window. This means that Mail Groups must be created before a session and cannot be creating during a session.

More information can be found at Mail Group Configuration.
