C3Fire

Demo : Fire Fighting : P1-F4

From C3LearningLabs



Files

Location
The configuration files are located at
SessionDef -> Demo -> FireFighting -> P1-F4
.../C3LearningLabs/C3Fire/Client/SessionDef/Demo/FireFighting/P1-F4
Configuration file : P1-F4.con
Scenario file : P1-F4.sce


Modules

Tasks
Forest Fire Yes
Search and Rescue No

Resources
Fire Fighters Yes
Fuel Logistic No
Water Logistic No
FireBreak No
UAV / Drone No
People Transportation No

Communication Tools
Mail Yes
Chat No
Diary No
Chared Map No
Map Symbols No
Voice No

Decision Suport
Prediction No

   

Organisation

Organisation

Units

The scenario contains the following units:

Fire Fighting Fire Fighting Fire Fighting Fire Fighting Fire Fighting Units
Logistic Units
Search and Rescue Units
Drone / UAV


Map

Map Objects

The scenario contain the following map objects.

Objects on map
Fire
Spread
Delay
Normal 1 Normal
Birch Birch 2 Slow
Pine Pine 0.5 Fast
Swamp Swamp No fire
House House
School School

Maps

The configuration contain the following map.

Map 1


Map
Orginal
Demo-P1-F4.con

Variations

P1-F4-SeeAllFire

This configuration let player-X see the all fire, even if the fire is not in the unit's field of view.
SessionDef -> Demo -> FireFighting -> P1-F4
.../C3LearningLabs/C3Fire/Client/SessionDef/Demo/FireFighting/P1-F4/Variations
Configuration file : P1-F4-SeeAllFire.con
Changed file : P1-F4-Roles-SeeAllFire.coni
Changed configiration
<Roles>
    <Role
      IDName = "X"
      ...
      SeeAllFire = "True"
      ...

User interface

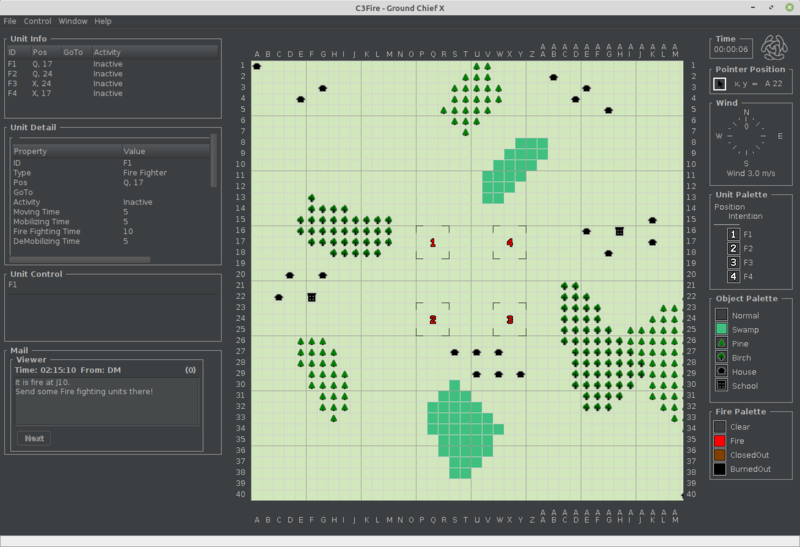

Player

Player

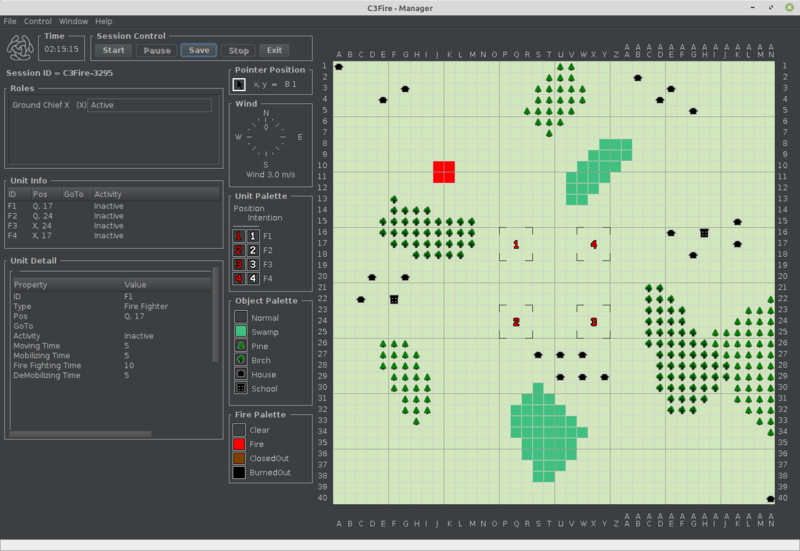

Manager

Player

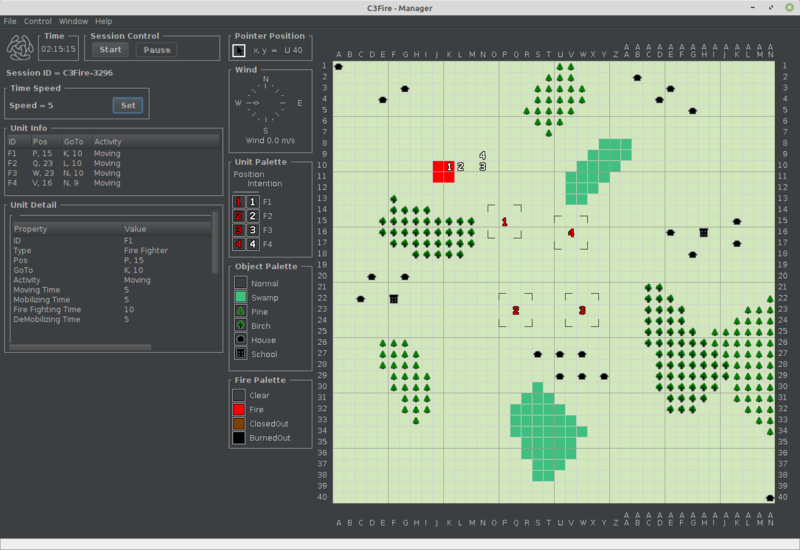

Replay

Player


Videos


Fire fighting Example

Resources

Organisation File:Demo-P1-F4-Organisation.odp
Icones
Pictures
