C3Fire

Project : P3-F6L2R2D1

From C3LearningLabs


Files

Location
The configuration files are located at
SessionDef -> Projects-> P3-F6L2R2D1
.../C3LearningLabs/C3Fire/Client/SessionDef/Projects/P3-F6L2R2D1
Condition-1
Configuration file : P3-F6L2R2D1-C1-F80.con
Scenario file : P3-F6L2R2D1-C1.sce
Condition-2
Configuration file : P3-F6L2R2D1-C2-F60.con
Scenario file : P3-F6L2R2D1-C2.sce
Training-1
Configuration file : P3-F6L2R2D1-T1.con
Scenario file : P3-F6L2R2D1-T1.sce
Training-2
Configuration file : P3-F6L2R2D1-T2.con
Scenario file : P3-F6L2R2D1-T2.sce

Modules

Tasks
Forest Fire Yes
Search and Rescue Yes

Resources
Fire Fighters Yes
Fuel Logistic No
Water Logistic Yes
FireBreak No
UAV / Drone Yes
People Transportation Yes

Communication Tools
Mail Yes
Chat No
Diary No
Chared Map No
Map Symbols No
Voice No

Decision Suport
Prediction No

    

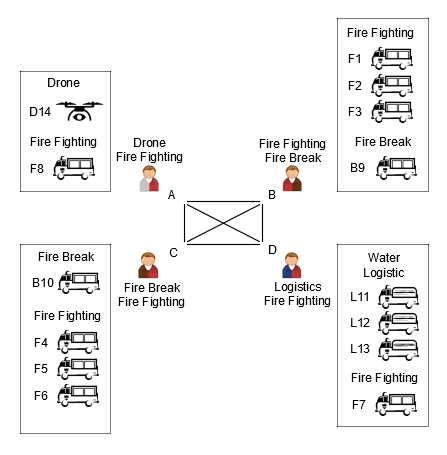

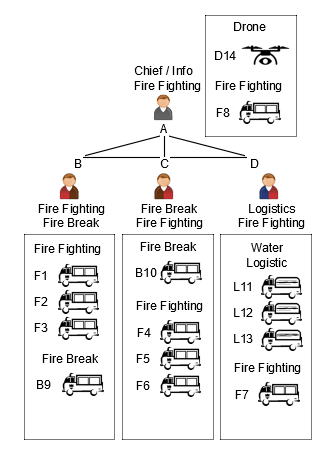

Organisation

Organisation    OR    Organisation


Units

Fire Fighting Fire Fighting Fire Fighting Fire Fighting Fire Fighting Fire Fighting Fire Fighting Units
Water Logistic Water Logistic Logistic Units
Search and Rescue Units Search and Rescue Units Search and Rescue Units
Drone Drone

Map

Map Objects

The scenario contain the following map objects.

Objects on map

Fire
Spread
Delay
Normal 1 Normal
Birch Birch 2 Slow
Pine Pine 0.5 Fast
House House
Tent Tent
Tent Water pump

Maps

The experiment did use three maps.

IMap 1

Map 2

Map 3


Condition-1
Orginal

Condition-2
Rotate Left


Condition-3
Flip Vertical
Rotate Right

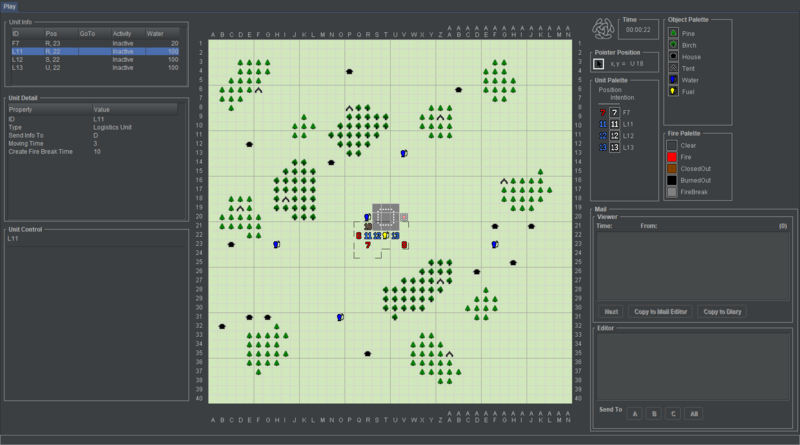

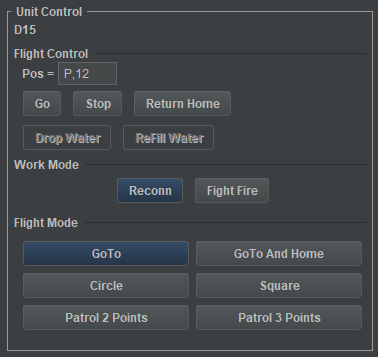

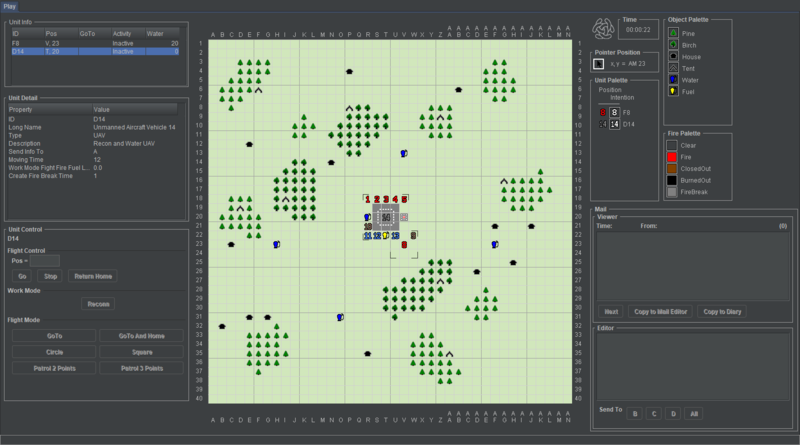

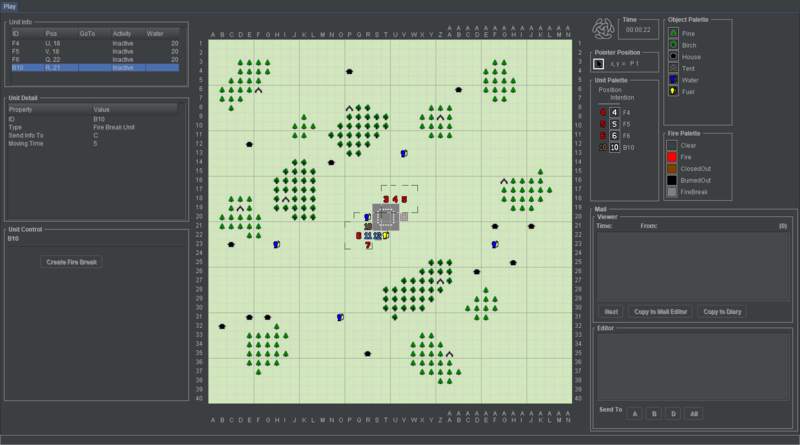

User interface

Player

Player A
Player Chief


Drone


Player B
Fire


Drone


Player C
Logistics


Drone


Player D
Rescue

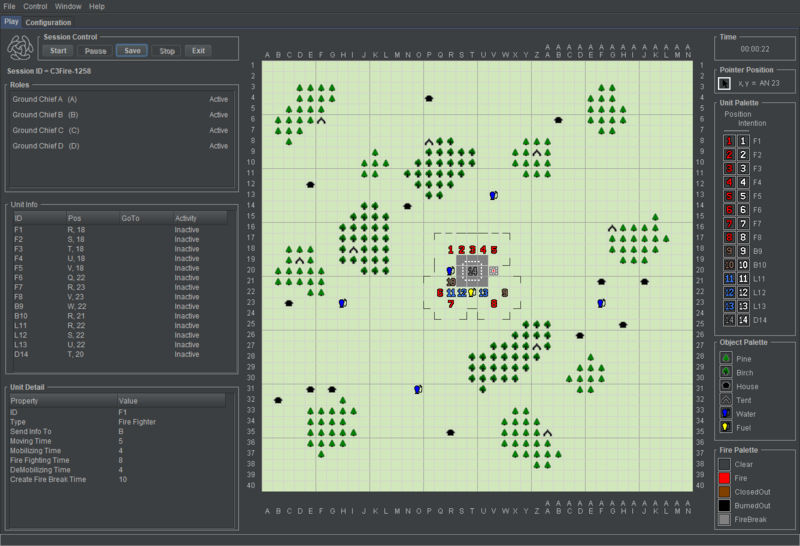

Manager

Player

Fire start and fire development

When new fires starts and how the fire develop if no fire fighting is done.


Contidion 1 (Medium - Orange)

Fire speed delay: 80

IMap 1

Map 2

Map 3

Map 4

Fire 1
00:02:15

Fire 2
00:02:19

Fire 3
00:02:25

End
00:02:30

Contidion 2 (Hard - Red)

Fire speed delay: 60

IMap 1

Map 2

Map 3

Map 4

Fire 1
00:02:15

Fire 2
00:02:19

Fire 3
00:02:25

End
00:02:30

Contidion 3 (Easy - Green)

Fire speed delay: 100

IMap 1

Map 2

Map 3

Map 4

Fire 1
00:02:15

Fire 2
00:02:19

Fire 3
00:02:25

End
00:02:30

Training 1

Fire speed delay: 100

IMap 1

Fire 1
00:02:15

Training 2

Fire speed delay: 100

Map 1

Map 4

Fire 1
00:02:15

End
00:02:30

Resources

Resources are located in the configuration folder.
.../C3LearningLabs/C3Fire/Client/SessionDef/Projects/P4-F8B2L3D1-3x15min/Info

Variations

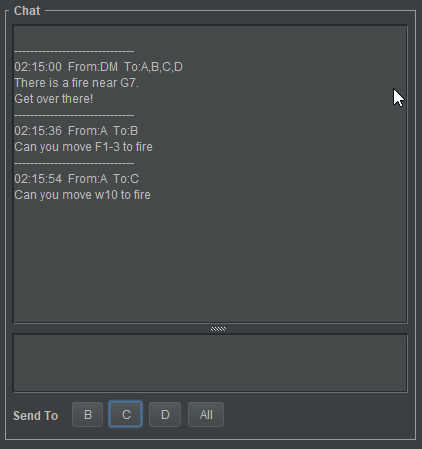

  • Chat : Configuration that uses a chat instead of mail.
Start configuration files exist in
.../C3LearningLabs/C3Fire/Client/SessionDef/Projects/P4-F8B2L3D1-3x15min/Variations/Chat



Chat
