C3Fire User Interface Configuration

From C3LearningLabs


Unit Information Frames

Information about the units are displayed in two frames, the outline frame and the detailed frame.

Outline Frame

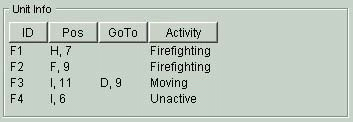

The outline frame displays selected values for a set of units. Each column displays a specified value type and each row displays the information for one unit. In the example image below, the units ID name, current position, intention (GoTo) and activity is displayed for fire fighting units 1,2,3 and 4.

Outline Frame

Unit selection

Selection of what unit to display in the detailed unit information frame is done by selecting a unit with the mouse in the outline frame.

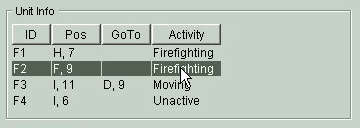

In the example below fire fighting unit number two is selected and then viewed in the detailed frame.

Outline Selection


Detailed Frame

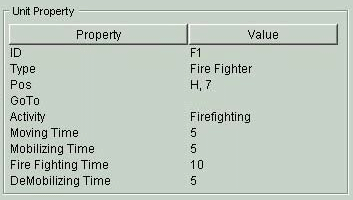

The detailed frame displays selected values for one unit. What unit to display is selected with the Outline Frame see Unit selection above. The configuration defines what properties to wiew for each type of units. Fire fighting units can display a set of properties while the water tank units can display a other set of properties.

Detailed Frame

Configuration

Every player (role) in a session should have a unit information frame configured. The players that controls units use to have their unit displayed in the unit information frame. Depending on the goal of the session you can freely decide what unit information the players should see. It is possible to let some player see all information for all units in the session. Example if they are member of the command and control staff they may be able to see all information.

The unit information frame configurations are identified with an ID name. In the RoleConfiguration for a player the parameter UnitInfoDisplayOutline refers to the unit information outline frame configuration that should be used for that role.

<Role>
  ...
  UnitInfoDisplayOutline = "Ground Chief"
  ...
</Role>


All unit Information frame configurations are in the xml element UnitInfoDisplay in the session configuration file. Inside the UnitInfoDisplay element the outline frame configurations are sored in UnitInfoDisplayOutline elements and the detailed frame configurations are stored in UnitInfoDisplayDetail elements.

<UnitInfoDisplay>
  <UnitInfoDisplayOutline> ... </UnitInfoDisplayOutline>
  <UnitInfoDisplayOutline> ... </UnitInfoDisplayOutline>
  ...
  <UnitInfoDisplayDetail> ... </UnitInfoDisplayDetail>
  <UnitInfoDisplayDetail> ... </UnitInfoDisplayDetail>
  ...
</UnitInfoDisplay>



Outline Configuration

The outline configuration is defined in xml element UnitInfoDisplayOutline. The configuration is identified with a ID name definet in the argument Name.

<UnitInfoDisplayOutline
      Name = "Ground Chief" >


Inside the UnitInfoDisplayOutline element the column configurations are sored in UnitInfoDisplayOutlineCol elements and the row configurations are stored in UnitInfoDisplayOutlineRow elements.

<UnitInfoDisplayOutline>
  <UnitInfoDisplayOutlineCol> ... </UnitInfoDisplayOutlineCol>
  <UnitInfoDisplayOutlineCol> ... </UnitInfoDisplayOutlineCol>
  ...
  <UnitInfoDisplayOutlineRow> ... </UnitInfoDisplayOutlineRow>
  <UnitInfoDisplayOutlineRow> ... </UnitInfoDisplayOutlineRow>
  ...
</UnitInfoDisplayOutline>


Outline Frame
Unit Information Outline Frame


UnitInfoDisplayOutlineCol

The UnitInfoDisplayOutlineCol defines a column in the outline frame and it have the following properties, Property, PropertyType and Width.

UnitInfoDisplayOutlineCol

Property

Value

Property

Defines what should be displayed in the column.

Possible values depends on what modules that are activated.
Look in the module dokumentation to view possible values.

Example on possible values:
"IDName", "Pos", "Intention", "Activity", "WaterLevel", "FuelLevel".

PropertyType

Defines how the displayed walue should be formatted.

Mainly used to define if it should be integers or float values.

Possible values = "String", "Integer", "Float".

Width

The width for the column, defined in pixels.

Value example = "50"


UnitInfoDisplayOutlineRow

The UnitInfoDisplayOutlineRow defines a row in the outline frame and it have the following properties, UnitIDName, and UnitInfoDisplayDetail.

UnitInfoDisplayOutlineRow

Property

Value

UnitIDName

Defines what unit that should be displayed on this row.

Possible values the units ID name.

Example on possible values = "F1", "F2".

UnitInfoDisplayDetail

Defines what detailed view configuration that should be used for this unit,

when the unit is displaying in the unit information detailed frame.

Possible values are the ID names for the defined UnitInfoDisplayDetail configurations.

Value examples = "FireFighter", "WaterTank"


Configuration code example:

<UnitInfoDisplayOutline
      Name = "Ground Chief" >

      <UnitInfoDisplayOutlineCol
        Property = "IDName"
        PropertyType = "String"
        width = "40" />

      <UnitInfoDisplayOutlineCol
        Property = "Pos"
        PropertyType = "String"
        width = "50" />

      ...

      <UnitInfoDisplayOutlineRow
        UnitIDName = "F1"
        UnitInfoDisplayDetail = "FireFighter" />

      <UnitInfoDisplayOutlineRow
        UnitIDName = "W5"
        UnitInfoDisplayDetail = "WaterTruck" />

     ....
    </UnitInfoDisplayOutline>



Detailed Configuration

The unit information detailed frame configuration is defined in xml element UnitInfoDisplayDetail. The UnitInfoDisplayDetail have the following properties, Name, PropertyColWidth and ValueColWidth.

UnitInfoDisplayDetail

Property

Value

Name

The identification name for this configuration.

This ID name is used in the property UnitInfoDisplayDetail
in the UnitInfoDisplayOutlineRow element described above.

Value example = "FireFighter"

PropertyColWidth

The width for the property column, defined in pixels.

Value example = "50"

ValueColWidth

The width for the value column, defined in pixels.

Value example = "50"



Inside the UnitInfoDisplayDetail element the row configurations are sored in UnitInfoDisplayDetailRow elements.

<UnitInfoDisplayDetail>
  <UnitInfoDisplayDetailRow> ... </UnitInfoDisplayDetailRow>
  <UnitInfoDisplayDetailRow> ... </UnitInfoDisplayDetailRow>
  ...
</UnitInfoDisplayDetail>


Detailed Frame
Unit Information Detailed Frame


UnitInfoDisplayDetailRow

The UnitInfoDisplayDetailRow defines a row in the detailed frame and it have the following properties, DisplayType, and Property.

UnitInfoDisplayDetailRow

Property

Value

Property

Defines what should be displayed in the row.

Possible values depends on what modules that are activated.
Look in the module dokumentation to view possible values.

Example on possible values:
"IDName", "Pos", "Intention", "Activity", "WaterLevel", "FuelLevel".

DisplayType

Defines how the displayed walue should be formatted.

Mainly used to define if it should be integers or float values.

Possible values = "String", "Number".


Configuration code example:

    <UnitInfoDisplayDetail
      Name = "WaterTruck"
      PropertyColWidth = "180"
      ValueColWidth = "150" >

      <UnitInfoDisplayDetailRow
        DisplayType = "String"
        Property = "IDName" />

      <UnitInfoDisplayDetailRow
        DisplayType = "String"
        Property = "Type" />

      <UnitInfoDisplayDetailRow
        DisplayType = "String"
        Property = "Pos" />

     ...

    </UnitInfoDisplayDetail>



Example Configuration Files

Outline Configuration Examples

Examples of outline configuration files containing the xml element UnitInfoDisplayOutline that describes the outline configuration.




Detailed Configuration Examples

Examples of detailed configuration files containing the xml element UnitInfoDisplayDetail that describes the detailed configuration.

Oh

hej Logga Logotype of C3Fire <Object

   Name = "Logga"
   Visible = "true"
   Pos = "265,220" />
UnitInfoDisplayDetailRow

Property

Value

Property

Defines what should be displayed in the row.

Possible values depends on what modules that are activated.
Look in the module dokumentation to view possible values.

Example on possible values:
"IDName", "Pos", "Intention", "Activity", "WaterLevel", "FuelLevel".

DisplayType

Defines how the displayed walue should be formatted.

Mainly used to define if it should be integers or float values.

Possible values = "String", "Number".

Outline Frame

The outline frame displays selected values for a set of units. Each column displays a specified value type and each row displays the information for one unit. In the example image below, the units ID name, current position, intention (GoTo) and activity is displayed for fire fighting units 1,2,3 and 4.

Outline Frame

Unit selection

Selection of what unit to display in the detailed unit information frame is done by selecting a unit with the mouse in the outline frame.
In the example below fire fighting unit number two is selected and then viewed in the detailed frame.

Outline Selection


Detailed Frame

The detailed frame displays selected values for one unit. What unit to display is selected with the Outline Frame see Unit selection above. The configuration defines what properties to wiew for each type of units. Fire fighting units can display a set of properties while the water tank units can display a other set of properties.

Detailed Frame

Configuration

Every player (role) in a session should have a unit information frame configured. The players that controls units use to have their unit displayed in the unit information frame. Depending on the goal of the session you can freely decide what unit information the players should see. It is possible to let some player see all information for all units in the session. Example if they are member of the command and control staff they may be able to see all information.

The unit information frame configurations are identified with an ID name. In the RoleConfiguration for a player the parameter UnitInfoDisplayOutline refers to the unit information outline frame configuration that should be used for that role.

<Role>
  ...
  UnitInfoDisplayOutline = "Ground Chief"
  ...
</Role>


All unit Information frame configurations are in the xml element UnitInfoDisplay in the session configuration file. Inside the UnitInfoDisplay element the outline frame configurations are sored in UnitInfoDisplayOutline elements and the detailed frame configurations are stored in UnitInfoDisplayDetail elements.

<UnitInfoDisplay>
  <UnitInfoDisplayOutline> ... </UnitInfoDisplayOutline>
  <UnitInfoDisplayOutline> ... </UnitInfoDisplayOutline>
  ...
  <UnitInfoDisplayDetail> ... </UnitInfoDisplayDetail>
  <UnitInfoDisplayDetail> ... </UnitInfoDisplayDetail>
  ...
</UnitInfoDisplay>



Outline Configuration The outline configuration is defined in xml element UnitInfoDisplayOutline. The configuration is identified with a ID name definet in the argument Name.

<UnitInfoDisplayOutline
      Name = "Ground Chief" >


Inside the UnitInfoDisplayOutline element the column configurations are sored in UnitInfoDisplayOutlineCol elements and the row configurations are stored in UnitInfoDisplayOutlineRow elements.

<UnitInfoDisplayOutline>
  <UnitInfoDisplayOutlineCol> ... </UnitInfoDisplayOutlineCol>
  <UnitInfoDisplayOutlineCol> ... </UnitInfoDisplayOutlineCol>
  ...
  <UnitInfoDisplayOutlineRow> ... </UnitInfoDisplayOutlineRow>
  <UnitInfoDisplayOutlineRow> ... </UnitInfoDisplayOutlineRow>
  ...
</UnitInfoDisplayOutline>


Outline Frame
Unit Information Outline Frame

UnitInfoDisplayOutlineCol

The UnitInfoDisplayOutlineCol defines a column in the outline frame and it have the following properties, Property, PropertyType and Width.

UnitInfoDisplayOutlineCol

Property

Value

Property

Defines what should be displayed in the column.

Possible values depends on what modules that are activated.
Look in the module dokumentation to view possible values.

Example on possible values:
"IDName", "Pos", "Intention", "Activity", "WaterLevel", "FuelLevel".

PropertyType

Defines how the displayed walue should be formatted.

Mainly used to define if it should be integers or float values.

Possible values = "String", "Integer", "Float".

Width

The width for the column, defined in pixels.

Value example = "50"

UnitInfoDisplayOutlineRow

The UnitInfoDisplayOutlineRow defines a row in the outline frame and it have the following properties, UnitIDName, and UnitInfoDisplayDetail.

UnitInfoDisplayOutlineRow

Property

Value

UnitIDName

Defines what unit that should be displayed on this row.

Possible values the units ID name.

Example on possible values = "F1", "F2".

UnitInfoDisplayDetail

Defines what detailed view configuration that should be used for this unit,

when the unit is displaying in the unit information detailed frame.

Possible values are the ID names for the defined UnitInfoDisplayDetail configurations.

Value examples = "FireFighter", "WaterTank"


Configuration code example:

<UnitInfoDisplayOutline
      Name = "Ground Chief" >

      <UnitInfoDisplayOutlineCol
        Property = "IDName"
        PropertyType = "String"
        width = "40" />

      <UnitInfoDisplayOutlineCol
        Property = "Pos"
        PropertyType = "String"
        width = "50" />

      ...

      <UnitInfoDisplayOutlineRow
        UnitIDName = "F1"
        UnitInfoDisplayDetail = "FireFighter" />

      <UnitInfoDisplayOutlineRow
        UnitIDName = "W5"
        UnitInfoDisplayDetail = "WaterTruck" />

     ....
    </UnitInfoDisplayOutline>




Detailed Configuration The unit information detailed frame configuration is defined in xml element UnitInfoDisplayDetail. The UnitInfoDisplayDetail have the following properties, Name, PropertyColWidth and ValueColWidth.

UnitInfoDisplayDetail

Property

Value

Name

The identification name for this configuration.

This ID name is used in the property UnitInfoDisplayDetail
in the UnitInfoDisplayOutlineRow element described above.

Value example = "FireFighter"

PropertyColWidth

The width for the property column, defined in pixels.

Value example = "50"

ValueColWidth

The width for the value column, defined in pixels.

Value example = "50"



Inside the UnitInfoDisplayDetail element the row configurations are sored in UnitInfoDisplayDetailRow elements.

<UnitInfoDisplayDetail>
  <UnitInfoDisplayDetailRow> ... </UnitInfoDisplayDetailRow>
  <UnitInfoDisplayDetailRow> ... </UnitInfoDisplayDetailRow>
  ...
</UnitInfoDisplayDetail>


Detailed Frame
Unit Information Detailed Frame


UnitInfoDisplayDetailRow

The UnitInfoDisplayDetailRow defines a row in the detailed frame and it have the following properties, DisplayType, and Property.

UnitInfoDisplayDetailRow

Property

Value

Property

Defines what should be displayed in the row.

Possible values depends on what modules that are activated.
Look in the module dokumentation to view possible values.

Example on possible values:
"IDName", "Pos", "Intention", "Activity", "WaterLevel", "FuelLevel".

DisplayType

Defines how the displayed walue should be formatted.

Mainly used to define if it should be integers or float values.

Possible values = "String", "Number".


Configuration code example:

    <UnitInfoDisplayDetail
      Name = "WaterTruck"
      PropertyColWidth = "180"
      ValueColWidth = "150" >

      <UnitInfoDisplayDetailRow
        DisplayType = "String"
        Property = "IDName" />

      <UnitInfoDisplayDetailRow
        DisplayType = "String"
        Property = "Type" />

      <UnitInfoDisplayDetailRow
        DisplayType = "String"
        Property = "Pos" />

     ...

    </UnitInfoDisplayDetail>




Example Configuration Files

Outline Configuration Examples

Examples of outline configuration files containing the xml element UnitInfoDisplayOutline that describes the outline configuration.

Bold text==== Detailed Configuration Examples ==== Examples of detailed configuration files containing the xml element UnitInfoDisplayDetail that describes the detailed configuration.

Session UI Configuration

The information in the Session Configuration defines a C3Fire session. It defines the players (Roles), the simuladed units (Fire fighting units), the simulation data (geographic and fire parameters etc.), and the session user interfaces.

All session configuration definitions are described in the menu selection Session Configuration exept the sub element UserInterfaceLayout wich is described in this menu selection even though UserInterfaceLayout is a part of the Session Configuration.

A session configuration file example - example.con. The configuration includes UserInterfaceLayout as a sub element.

XML Definition

The configuration is written with xml syntax and the xml file contains the main element <Config>. <UserInterfaceLayout> is a sub element of <Config> and will be described here. All other sub elements of <Config> is described in session configuration.

<Config>
       <Roles>
         <Role>
       <Units>
         <Unit>
       <FireFightingConfig>
       <UnitCommunicationConfig>
       <UnitMovementConfig>
       <MapConfig>
               <MapLayer>

<MapImageLayers>

       <MapLayerQuickSelectDisplay>
       <FireConfig>
       <ObjectTypes>
         <ObjectType>
       <MailConfig>
       <DiaryConfig>
       <MarkTypes>
         <MarkType>
       <MarkSendRules>
         <MarkSendRule>
       <Objects>
         <Object>
       <DisplayObjects>
         <DisplayObjects>
       <UserInterfaceLayout>
         <Layout>
           <Object>
       <UnitInfoDisplay>
         <UnitInfoDisplayOutline>
           <UnitInfoDisplayOutlineCol>
           <UnitInfoDisplayOutlineRow>
         <UnitInfoDisplayDetail>
           <UnitInfoDisplayDetailRow>
       <AnalysisConfig>
       <ManagerConfig>
         <SessionControlLayout>
           <Object>
       <ObserverConfig>
         <SimulationMapLayout>
           <Object>
         <RolesMapLayout>
           <Object>
         <FireChartLayout>
           <Object>
       <ReplayConfig>
         <SimulationMapLayout>
           <Object>
UserInterfaceLayout

Defines all layouts that exist in the session


<UserInterfaceLayout/>

 <Layout Name = "Ground Chief"/>

   <Object Name = "Window"   Size = "1024,740" />
   <Object Name = "Logga"    Pos = "265,220" />

   <Object
     Name = "RoleName"
     Visible = "true"
     Pos = "8,10" />

   <Object
     Name = "Time"
     Visible = "true"
     Pos = "10,30"
     Size = "75,50" />

   <Object
     Name = "Wind"
     Visible = "true"
     Pos = "870,10"
     Size = "130,145"/>

   <Object
     Name = "Map"
     Visible = "true"
     Pos = "250,10"
     Size="610,610"/>

   <Object
     Name = "PointerPosition"
     Visible = "true"
     Pos = "870,155"
     Size = "130,50"/>

   <Object
     Name = "UnitInfoOutline"
     Visible = "true"
     Pos = "10,85"
     Size="230,120"/>

   <Object
     Name = "UnitInfoDetail"
     Visible ="true"
     Pos = "10,205"
     Size = "230,200"/>

   <Object
     Name = "ObjectPalette"
     Visible = "true"
     Pos = "870,375"
     Size = "130,120"
     Enabeled = "true" />

   <Object
     Name = "FirePalette"
     Visible = "true"
     Pos = "870,500"
     Size = "130,120"
     Enabeled = "true" />

   <Object
     Name = "MarkPalette"
     Visible = "false"
     Pos = "0,0"
     Size = "0,0"
     Enabeled = "false" />

   <Object
     Name = "UnitPalette"
     Visible = "true"
     Pos = "870,205"
     Size = "130,165"
     PositionEnabeled = "true"
     IntentionEnabeled = "true" />

   <Object
     Name = "Mail"
     Visible = "true"
     Pos = "10,410"
     Size = "230,180"
     MailReceiveVisible = "true"
     MailReceivePanelPos = "5,15"
     MailReceivePanelSize = "220,160"
     MailReceiveShowTo = "false"
     MailSendVisible = "false"
     MailSendPanelPos = "10,180"
     MailSendPanelSize = "350,150"
     MailSendButtonType = "Buttons"
     MailSendButtonsDisplayToAllButton = "true"
     MailSendButtonsLayoutNrOfRows = "1"
     MailSendButtonsLayoutNrOfColums = "0" />

   <Object
     Name = "Diary"
     Visible = "false"
     Pos = "800,10"
     Size = "370,340"
     DiaryViewVisible = "false"
     DiaryViewPanelPos = "10,15"
     DiaryViewPanelSize = "350,155"
     DiaryEditVisible = "false"
     DiaryEditPanelPos = "10,175"
     DiaryEditPanelSize = "350,150"/>

   <Object
     Name = "MapLayerQuickSelect"
     Visible = "false"
     Pos = "1140,505"
     Size = "120,120"
     ButtonGridLayout = "0,1"
     StartLayer = "Green"/>

 </Layout>


</UserInterfaceLayout>

Layout
Layout defines the user interface connected to a role.

Property

Value

Name

The name of the layout. A role is connected to a layout with the property UserInterfaceLayout found in the roles configuration.

Value example = "Ground Chief"
