C3Fire

Start a C3Fire Replay in a local area network - Mac

From C3LearningLabs



Quick instructions
 In a terminal window, do the following commands

cd /Applications/C3System/C3LearningLabs/C3Fire/Client/Application
sudo sh C3FireClient-Start-Mac.sh

Start C3Fire Replay

This describes how to start a C3Fire replay in a local area network (LAN).
How to install and configure a server is described here, Install and Config.

You can start C3Fire server with the commands described below in a terminal window.


 You can launch a terminal window by:
 Click on the terminal icon in the Launchpad.


 or, Click the Spotlight icon. It’s the magnifying glass at the top right corner of the screen.
 Type terminal.app into the search box.

Start C3Fire client


Start with shell script
Go to the C3Fire client application folder: <C3LEARNINGLABS-ROOT>/C3Fire/Client/Application/
Example: cd /Applications/C3System/C3LearningLabs/C3Fire/Client/Application
Start the client with the following command:
sudo sh C3FireClient-Start-Mac.sh

Start Client




After some startup processes the C3Fire client should start.

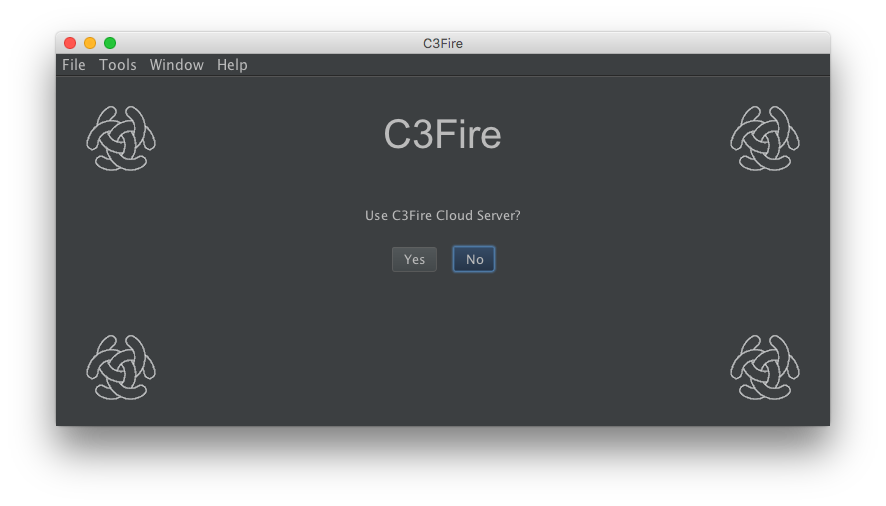

Select use C3Cloud server - No


Select use cloud server

Select manager


Select manager or player

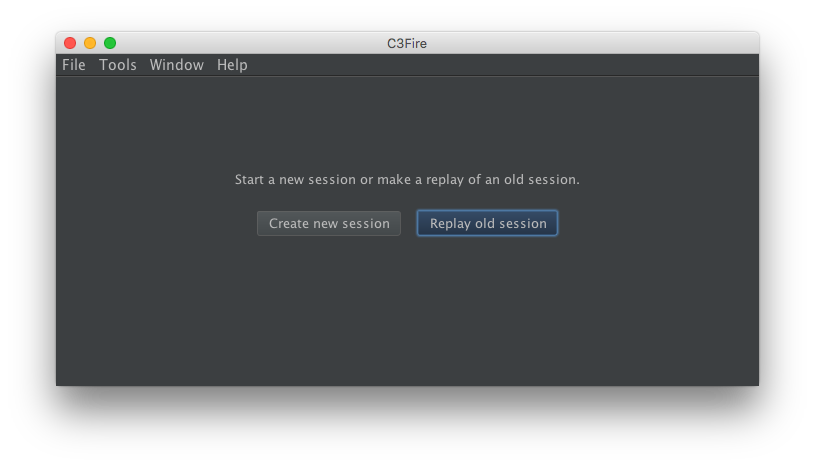

Select replay


Select create new session or replay

Select C3Fire server location
Select if the C3Fire session server is located in your Lan (Local area network).
or if it is located at internet (Wan).


Select Lan or Wan

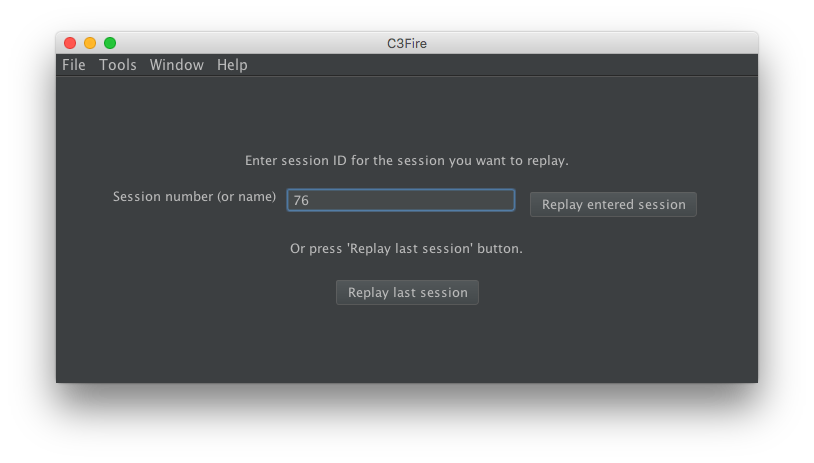

Select session to replay
Enter session id number, or press Replay Last Session.
Only the number, Example 78


Select create new session or replay

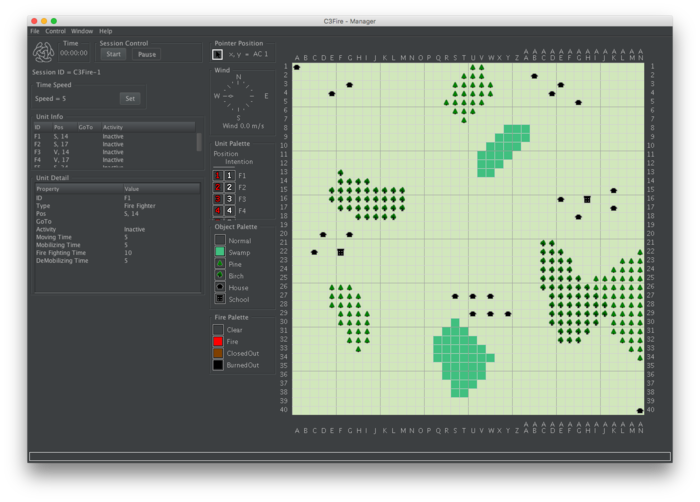

Replay started


Enter session info
